Stainless Steel 304L Flanges

Widely used in construction, machinery, coal, chemical industry, railway vehicles, automotive industry, roads, Bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery manufacturing industry.

Stainless Steel 304L Flanges
Specification:10-1220mm, (3/8"-100") etc.
Thickness:0.3-150mm,(SCH10-XXS)
pressure:PN0.5-PN50
Products can be customized

Surface:BA,2B,NO.1,NO.4,4K,HL,8K
Standard:ASTM,AISI,JIS,GB, DIN,EN

Drop Us A Line To Get A Quote

Office Address: Plot A-4, Huazhi Vientiane World, No. 2 Maolingshan Road, Lixia District, Jinan City, Shandong Province

Inquiry Now

Product Details

PRODUCT DETAIL

What Is Stainless Steel 304L Flanges

304L is a versatile stainless steel widely used in the production of equipment and components that require good comprehensive performance (corrosion resistance and formability).

Stainless steel 304/ 304L flanges may be manufactured in accordance with ASME B16.5 or ASME B16.47 with nominal composition of 18Cr-8Ni. The letter “L” denotes low-carbon version of the 304 stainless steel. The flanges may be made from forgings, castings, or plates covering various types and classes of ASME B16.5 and ASME B16.47 (both Series A and Series B). Stainless steel 304/ 304L flanges of ASME B16.5 are available in Classes 150, 300, 400, 600, 900, 1500, 2500; that of ASME B16.47 Series A are available in Classes 150, 300, 400, 600, 900; that of ASME B16.47 Series B are available in Classes 75, 150, 300, 400, 600, 900.


Manufacture & Heat Treatment

Stainless steel 304/ 304L flanges made of ASTM A182 F304/ F304L forgings shall be solution treated at the temperature no less than 1900°F [1040°C] with subsequent quenching treatment to cool it down to below 500°F [260°C] rapidly. SS 304/ 304L flanges made of ASTM A351 CF8/ CF3 castings shall be solution treated at the minimum temperature of 1900°F [1040°C] followed by a quench in water. Flanges without hub (blind, S/O plate) may be manufactured directly from stainless steel plates of ASTM A240 Gr. 304 or 304L, which shall be solution annealed.


Pressure-Temperature Ratings

Both ASME B16.5 and ASME B16.47 have consistently presented the pressure-temperature ratings for stainless 304/ 304L flanges in various material grades. Based on the pressure-temperature ratings, diverse stainless steel 304 and 304L flange materials can be classified into two groups: Group 2.1 – including ASTM A182 Gr. F304, ASTM A351 Gr. CF3 & CF8, ASTM A240 Gr.304; Group 2.3 – including ASTM A182 F304L, ASTM A240 Gr. 304L.


Flange Type

Double phase steel flange, stainless steel flange, American standard with neck butt welding flange, American standard with neck flat welding flange, loose sleeve flat welding flange, movable flange, neck butt welding convex concave surface flange, neck flat welding flange, ring connection butt welding flange, protruding surface flange, reducer flange, butt welding flange, flat welding flange, socket welding flange, concave convex surface flange, butt welding ring loose sleeve flange, flange cover, blind plate, 8-shaped blind plate.


Product

Stainless Steel 304L Flanges

Specifications

10-1220mm,  (3/8"-100") etc.

Thickness

0.3-150mm, (SCH10-XXS)

Pressure

PN0.5 - PN500

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc

Certification

Support third-party detection: ISO, SGS, BV, etc

Technique

Cold Rolled / Hot Rolled

Edge

Mill Edge / Slit Edge

Main Market

Asia, Europe, South America, North America, Middle East, Africa, Southeast Asia, Oceania, etc.

Brand Name

TISCO

Supply Ability

5000 Tons per Month

Packaging & Delivery

In bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands

20ft GP: 5898mm (Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP: 12032mm (Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC: 12032mm (Length)x2352mm(Width)x2698mm(High) 68CBM

PRODUCT DISPLAY

  • Stainless-Steel-Pipe-Fittings1.jpg
  • Stainless-Steel-Pipe-Fittings6.jpg
  • Stainless-Steel-Pipe-Fittings5.jpg
  • Stainless-Steel-Pipe-Fittings4.jpg
  • Stainless-Steel-Pipe-Fittings3.jpg
  • Stainless-Steel-Pipe-Fittings2.jpg

SURFACE TREATMENT

  • BA.jpg
  • 8K.jpg
  • 2BA.jpg
  • 2B.jpg
  • NO.1.jpg
  • NO.4.jpg
  • Hairline.jpg
  • SB.jpg
  • DN-2.jpg
  • 1D.jpg
  • Perforated.jpg
  • Embossed.jpg
  • Diamond
    Diamond
  • Checkered.jpg

APPLICATION INDUSTRY

● Automotive Industry: Stainless steel fittings can be used in vehicles and the automotive industry. Using high-strength stainless steel to manufacture the body structure can reduce the weight of the vehicle, enhance the strength of the body structure, and reduce maintenance costs.


● Building Decoration: Stainless steel fittings are widely used in building decoration, mainly for covering the exterior walls, interior and exterior columns, handrails, floors, elevator wall panels, doors and windows, curtain walls and other interior and exterior decorations and components of high-rise buildings.


● Water Industry: Stainless steel has significant advantages in water storage, transportation, purification, regeneration, seawater desalination and other fields.


● Petrochemical Industry: Stainless steel fittings are used in the petrochemical industry to transport corrosive media such as sulfuric acid, hydrochloric acid, etc.

  • Construction.jpg
    Bridge Construction
  • Oil & Gas.jpg
    Oil & Gas

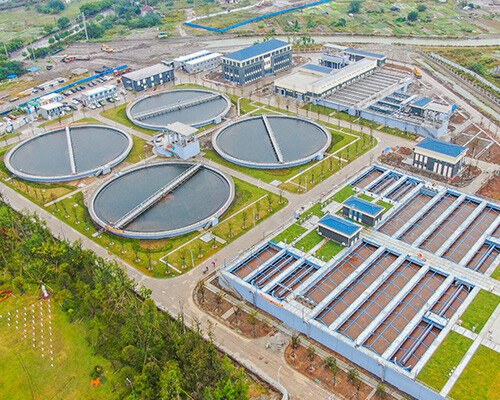

  • Water-Treatment.jpg
    Water Treatment

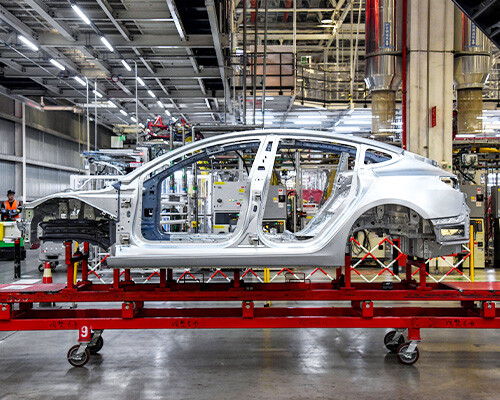

  • Automobile.jpg
    Automobile

INSPECTION REPORT

  • 证书1.jpg
    ISO9001
  • SGS.jpg
    SGS
  • HQTS.jpg
    HQTS
  • TUV.jpg
    TUV

PACKAGING & SHIPPING

  • Stainless-Steel-Pipe-Fittings9.jpg
  • Stainless-Steel-Pipe-Fittings8.jpg
  • Stainless-Steel-Pipe-Fittings10.jpg
  • Stainless-Steel-Pipe-Fittings7.jpg
