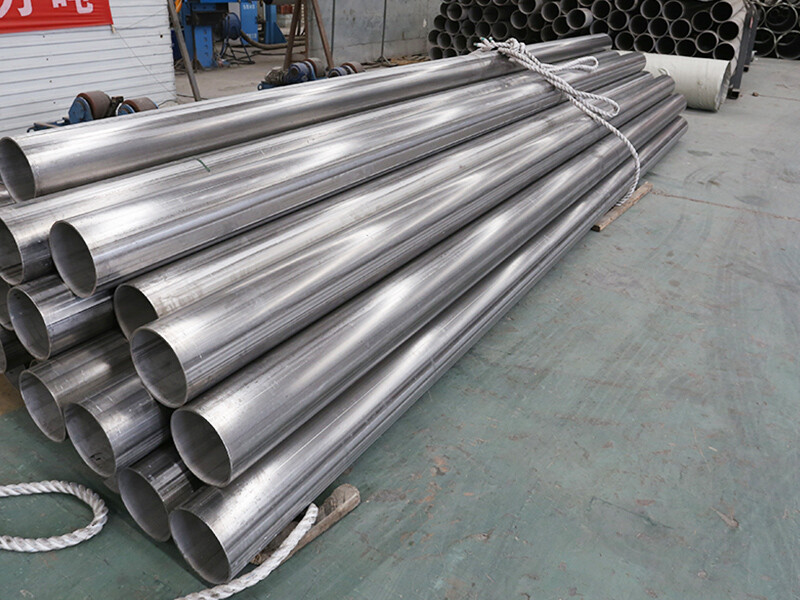

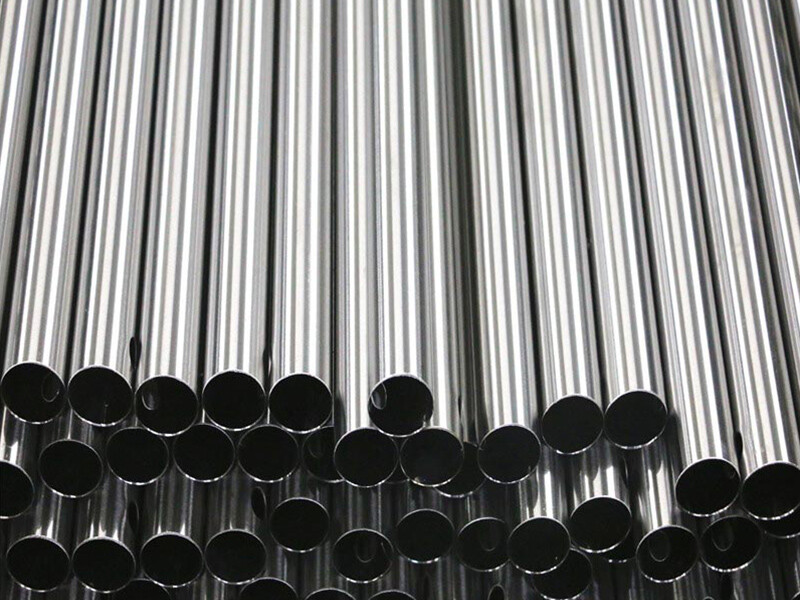

316 Stainless Steel Pipe

Widely used in construction, machinery, coal, chemical industry, railway vehicles, automotive industry, roads, Bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery manufacturing industry.

316 Stainless Steel Pipe
Outer Diameter:6-2500mm, (3/8"-100")
Thickness:0.3-150mm,(SCH10-XXS)
Length:2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc
Products can be customized

Surface:BA,2B,NO.1,NO.4,4K,HL,8K
Standard:ASTM,AISI,JIS,GB, DIN,EN

Drop Us A Line To Get A Quote

Office Address: Plot A-4, Huazhi Vientiane World, No. 2 Maolingshan Road, Lixia District, Jinan City, Shandong Province

Inquiry Now

Product Details

PRODUCT DETAIL

After 304, 316 Stainless Steel Pipe is the most common stainless steel on the market. Again it is an austenitic grade with the addition of 2-3% molybdenum which further improves corrosion resistance. It is often referred to as a marine grade stainless steel because of its effective resistance to chloride corrosion in comparison to other stainless steel grades. The material has superior welding and forming qualities. Grade 316 will require post-weld annealing to promote maximum corrosion resistance, though this is not necessary if Type 316L is used.

Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). Grade 316H, with its higher carbon content has application at elevated temperatures, as does stabilized grade 316Ti.


Corrosion Resistance of 316 Stainless Steel Pipes

Excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 600C. Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 600C.

316 is usually regarded as the standard "marine grade stainless steel", but it is not resistant to warm sea water. In many marine environments 316 does exhibit surface corrosion, usually visible as brown staining. This is particularly associated with crevices and rough surface finish.


Heat Treatment of 316 Stainless Steel Pipes

Solution Treatment (Annealing) - Heat to 1010-11200C and cool rapidly. These grades cannot be hardened by thermal treatment.


Product

316 Stainless Steel Pipe

Outer Diameter

6-2500mm (3/8"-100")

Thickness

0.3-150mm (SCH10-XXS)

Length

1-12m (Common Sizes: 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc)

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc

Certification

Support third-party detection: ISO, SGS, BV, etc

Technique

Cold Drawn Seamless Tube / Welded pipe

Edge

Mill Edge / Slit Edge

Main Market

Asia, Europe, South America, North America, Middle East, Africa, Southeast Asia, Oceania, etc.

Brand Name

TISCO

Supply Ability

5000 Tons per Month

Packaging & Delivery

In bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands

20ft GP: 5898mm (Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP: 12032mm (Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC: 12032mm (Length)x2352mm(Width)x2698mm(High) 68CBM

Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.03

≤ 0.75

≤ 2.0

16.0~18.0

10.0~14.0

≤ 0.03

≤ 0.045

PRODUCT DISPLAY

  • Stainless Steel Pipe (5).jpg
  • Stainless Steel Pipe (4).jpg
  • Stainless Steel Pipe (3).jpg
  • Stainless Steel Pipe (2).jpg
  • Stainless Steel Pipe (1).jpg
  • Stainless Steel Pipe (6).jpg

SURFACE TREATMENT

  • BA.jpg
  • 8K.jpg
  • 2BA.jpg
  • 2B.jpg
  • NO.1.jpg
  • NO.4.jpg
  • Hairline.jpg
  • SB.jpg
  • DN-2.jpg
  • 1D.jpg
  • Perforated.jpg
  • Embossed.jpg
  • Diamond
    Diamond
  • Checkered.jpg

APPLICATION INDUSTRY

Construction Industry: Commonly used pipe material in building drainage systems, which can be used for water supply, drainage, heating, ventilation and other systems in buildings. It can also be used for structural support and decoration of buildings.



Food Manufacturing: Used to transport food raw materials, finished products, and media used in the production process in industries such as food processing, beverages, dairy products, etc., such as milk, juice, beer, etc.



Medical Field: Used for manufacturing medical devices, surgical instruments, implants, etc., such as surgical knives, forceps, artificial joints, etc., requiring pipes to have good biocompatibility and corrosion resistance.



Energy Field: Used for transporting media such as oil and gas, nuclear fuel, and for manufacturing energy equipment, such as oil pipelines and nuclear power plant pipelines, in industries such as oil, natural gas, and nuclear energy.

  • 建筑1.jpg
    Construction Industry
  • 食品.jpg
    Food Manufacturing
  • 医疗.jpg
    Medical Field
  • 石化.jpg
    Energy Field
