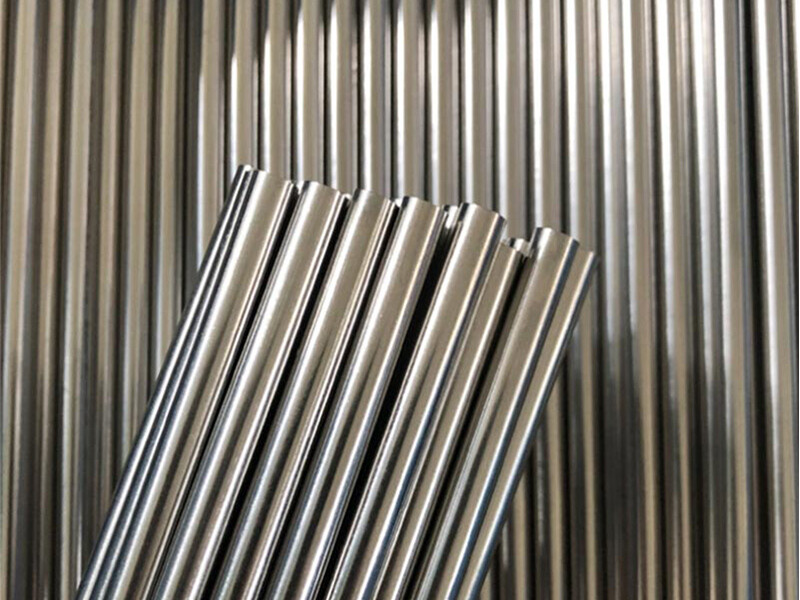

304 Stainless Steel Pipe

Widely used in construction, machinery, coal, chemical industry, railway vehicles, automotive industry, roads, Bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery manufacturing industry.

304 Stainless Steel Pipe
Outer Diameter:6-2500mm, (3/8"-100")
Thickness:0.3-150mm,(SCH10-XXS)
Length:2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc
Products can be customized

Surface:BA,2B,NO.1,NO.4,4K,HL,8K
Standard:ASTM,AISI,JIS,GB, DIN,EN

Drop Us A Line To Get A Quote

Office Address: Plot A-4, Huazhi Vientiane World, No. 2 Maolingshan Road, Lixia District, Jinan City, Shandong Province

Inquiry Now

Product Details

PRODUCT DETAIL

304 Stainless Steel Pipes Grade of the most versatile and commonly used stainless steels on the market, Grade 304 stainless steel Pipe is the most standard used alloy of this type. Essentially, Grade SS 304 Pipe is an austenitic chromium alloy which is also known as an "18/8" stainless as the make-up of the steel is 18% chromium and 8% nickel.

The chromium content promotes the material's considerable resistance to the effects of corrosion and oxidation. The stainless steel alloy resists most oxidizing acids and will withstand ordinary rusting though this does not mean that the steel will not tarnish over time. The steel needs to be cold worked to generate higher tensile strength. For stainless steel sections which are welded heavily, post-weld annealing may be necessary to provide maximum corrosive resistance.


Applications of Grade 304 Stainless Steel

The steel is common throughout industry particularly in food processing as the material is not susceptible to corrosion from acids found in common foodstuffs. As a consequence, such steel is ideal for items such as sinks, work surfaces, preparation areas and refrigerators. It is also a perfect material for use in the pharmaceutical industry for environments such as clean rooms.

Grade 304 can also be found in heat exchangers, chemical containers, Pipelines and throughout the brewing industry. It can be used as a fabricated material where high temperature petroleum gases or steam production gases are stored such as pressure vessels. It can even be found extensively in the construction industry where the material is used for cosmetic purposes such as building fascias.

304 & 304L plate and Pipe have similar properties and in certain cases are stocked with Dual Certification, where it is concluded that each item has properties and a composition which comply with both steel types. Grade 304H cannot be included in this equation due to the steel's higher carbon content which is intended for use in elevated temperature applications. 304 Stainless Steel Pipe and Tubes Composition


304 Stainless Steel Pipe corrosion Resistance

Excellent in a wide range of atmospheric environments and many corrosive media. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 600C. Considered resistant to potable water with up to about 200mg/L chlorides at ambient temperatures, reducing to about 150mg/L at 600C.

304 Stainless Steel Pipe Heat Resistance Good oxidation resistance in intermittent service to 8700C and in continuous service to 9250C. Continuous use of 304 in the 425-8600C range is not recommended if subsequent aqueous corrosion resistance is important. Grade 304L is more resistant to carbide precipitation and can be heated into the above temperature range.

Grade 304H has higher strength at elevated temperatures so is often used for structural and pressure-containing applications at temperatures above about 5000C and up to about 8000C. 304H will become sensitised in the temperature range of 425-8600C; this is not a problem for high temperature applications, but will result in reduced aqueous corrosion resistance.


304 Stainless Steel Pipe Heat Treatment

Solution Treatment (Annealing) - Heat to 1010-11200C and cool rapidly. These grades cannot be hardened by thermal treatment.


Product

304 Stainless Steel Pipe

Outer Diameter

6-2500mm (3/8"-100")

Thickness

0.3-150mm (SCH10-XXS)

Length

1-12m (Common Sizes: 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc)

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc

Certification

Support third-party detection: ISO, SGS, BV, etc

Technique

Cold Drawn Seamless Tube / Welded pipe

Edge

Mill Edge / Slit Edge

Main Market

Asia, Europe, South America, North America, Middle East, Africa, Southeast Asia, Oceania, etc.

Brand Name

TISCO

Supply Ability

5000 Tons per Month

Packaging & Delivery

In bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands

20ft GP: 5898mm (Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP: 12032mm (Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC: 12032mm (Length)x2352mm(Width)x2698mm(High) 68CBM

Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.08

≤1.0

≤ 2.0

18.0~20.0

8.0~10.5

≤ 0.03

≤ 0.035


PRODUCT DISPLAY

  • Stainless Steel Pipe (5).jpg
  • Stainless Steel Pipe (4).jpg
  • Stainless Steel Pipe (3).jpg
  • Stainless Steel Pipe (2).jpg
  • Stainless Steel Pipe (1).jpg
  • Stainless Steel Pipe (6).jpg

SURFACE TREATMENT

  • BA.jpg
  • 8K.jpg
  • 2BA.jpg
  • 2B.jpg
  • NO.1.jpg
  • NO.4.jpg
  • Hairline.jpg
  • SB.jpg
  • DN-2.jpg
  • 1D.jpg
  • Perforated.jpg
  • Embossed.jpg
  • Diamond
    Diamond
  • Checkered.jpg

APPLICATION INDUSTRY

Construction Industry: Commonly used pipe material in building drainage systems, which can be used for water supply, drainage, heating, ventilation and other systems in buildings. It can also be used for structural support and decoration of buildings.



Food Manufacturing: Used to transport food raw materials, finished products, and media used in the production process in industries such as food processing, beverages, dairy products, etc., such as milk, juice, beer, etc.



Medical Field: Used for manufacturing medical devices, surgical instruments, implants, etc., such as surgical knives, forceps, artificial joints, etc., requiring pipes to have good biocompatibility and corrosion resistance.



Energy Field: Used for transporting media such as oil and gas, nuclear fuel, and for manufacturing energy equipment, such as oil pipelines and nuclear power plant pipelines, in industries such as oil, natural gas, and nuclear energy.

  • 建筑1.jpg
    Construction Industry
  • 食品.jpg
    Food Manufacturing
  • 医疗.jpg
    Medical Field
  • 石化.jpg
    Energy Field
